Version 1.2 Released

Mar 15, 2020

We are proud to announce the release of version 1.2 of the Polygon Mesh Processing Library! This minor release includes a couple of new features, enhancements, bug fixes, and updates to third-party libraries. Highlights include:

  • Improved rendering of general polygons, avoiding erroneous tessellation into overlapping/flipped triangles in case of non-convex polygons.
  • Added support for rendering using matcaps.
  • Eigen interoperability: Matrix and vector classes can now be assigned and cast from Eigen matrices and vectors.
  • Matrix and vector classes can now be constructed using initializer lists.

You can find a full summary of changes in the changelog.

Matcap Rendering

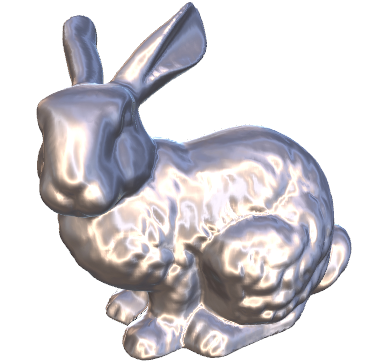

The new matcap rendering is demonstrated in our mesh viewer application. mview now takes an optional -m argument specifying the matcap to be used. We included several example files in the pmp-data repository. See below for an example using the following command line:

./mview -m ../external/pmp-data/matcap/metal_shiny.jpg ../external/pmp-data/off/bunny.off
matcap

Improved Polygon Rendering

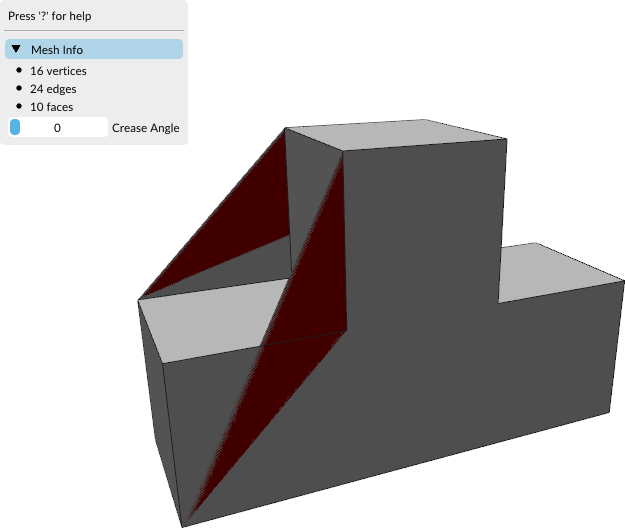

The improved polygon rendering is demonstrated best by an example. Before the improvements the rendering of a mesh containing non-convex polygons could lead to undesirable overlapping/flipped triangles:

before

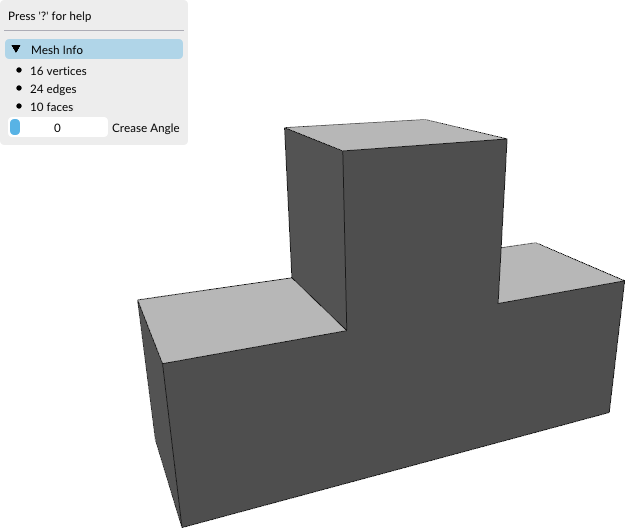

The improved version now renders the same mesh correctly:

before

Eigen Interoperability

This release also improves interoperability with the Eigen library. We added support to construct/assign pmp::Matrix and pmp::Vector classes from Eigen as well as support to cast the pmp::Matrix and pmp::Vector class to Eigen. Example for construction:

// construction from Eigen
Eigen::Vector3d eigenVec(1.0, 2.0, 3.0);
pmp::dvec3 pmpVec = eigenVec;
Generic class for matrices.
Definition: mat_vec.h:27

Example for assignment:

// assignment from Eigen
Eigen::Vector3d eigenVec(1.0, 2.0, 3.0);
pmp::dvec3 pmpVec;
pmpVec = eigenVec;

Example for cast:

// cast to Eigen
pmp::vec3 pmpVec(1.0, 2.0, 3.0);
Eigen::Vector3f eigenVec = static_cast<Eigen::Vector3f>(pmpVec);

Obtaining the pmp-library

Get your own copy by cloning:

git clone --recursive https://github.com/pmp-library/pmp-library.git

Checkout the 1.2 release tag:

cd pmp-library && git checkout 1.2.0

Configure and build:

mkdir build && cd build && cmake .. && make

Run the mesh processing app

./mpview ../external/pmp-data/off/bunny.off

Reporting Bugs or Problems

If you encounter any glitches or problems please report the issue on our GitHub issue tracker.
